晶片溫控冰水機規格表
可搭配各製程僅有侷限空間但需要降溫系統的設備中
Thermochiller – W Series
●小型低功率 chiller (600W~2000W)
●供設備冷卻，藥液控溫需求

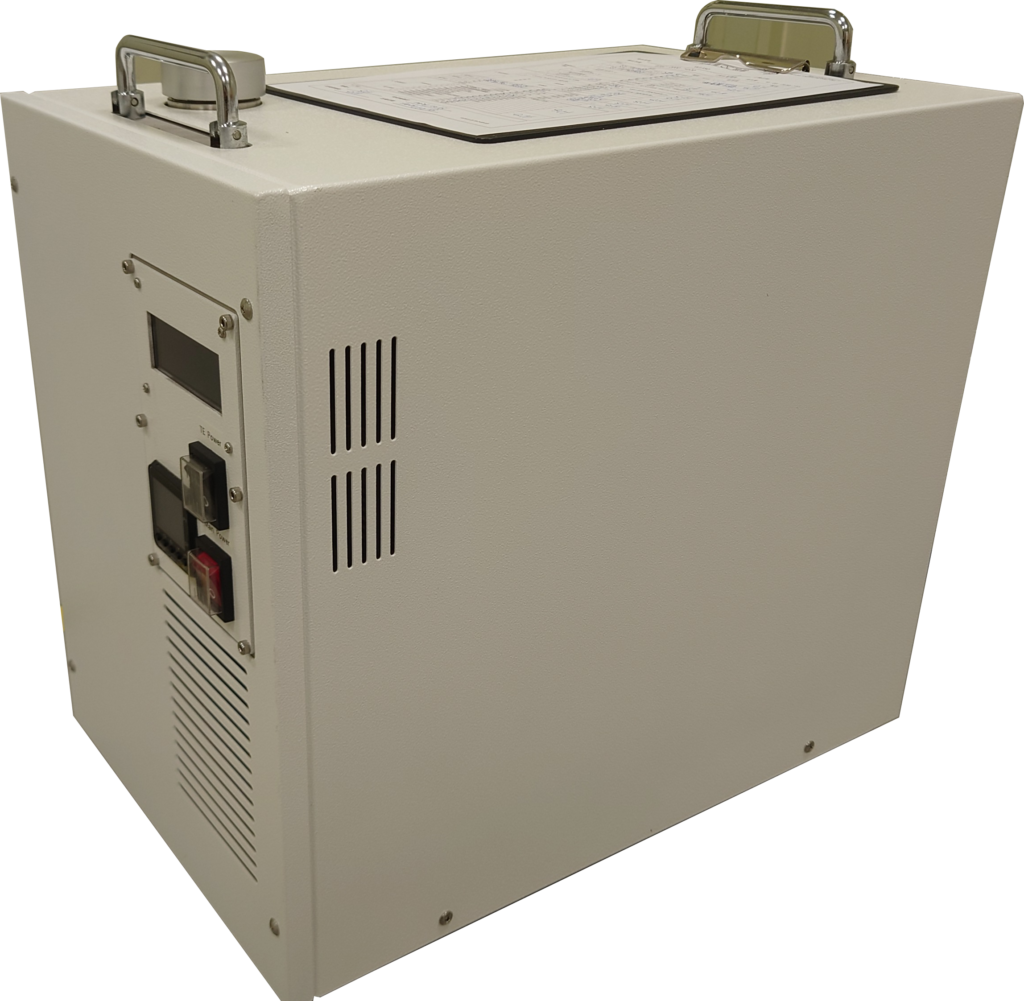

| MODEL | W600S | W1000 | W1350 |
|---|---|---|---|
| Temp. Control Method | Thermoelectric Cooling | ||
| Temp. Sensor | PT100 PID W/tuning | ||
| Cooling Method | Water Cooling | ||
| Ambient Temp. and humidity | 15~35 °C / 35~80% RH (No condensation) | ||
| Facility water flow | LPM 2~5 | ||
| Facility water Temp. | 10~35 °C | ||
| Operating Temp. Range | -10 ~ 60 | ||
| Temp. Stability | ±0.05 °C | ||
| Circulation flow | 10 LPM (1/2″ tubing) | ||

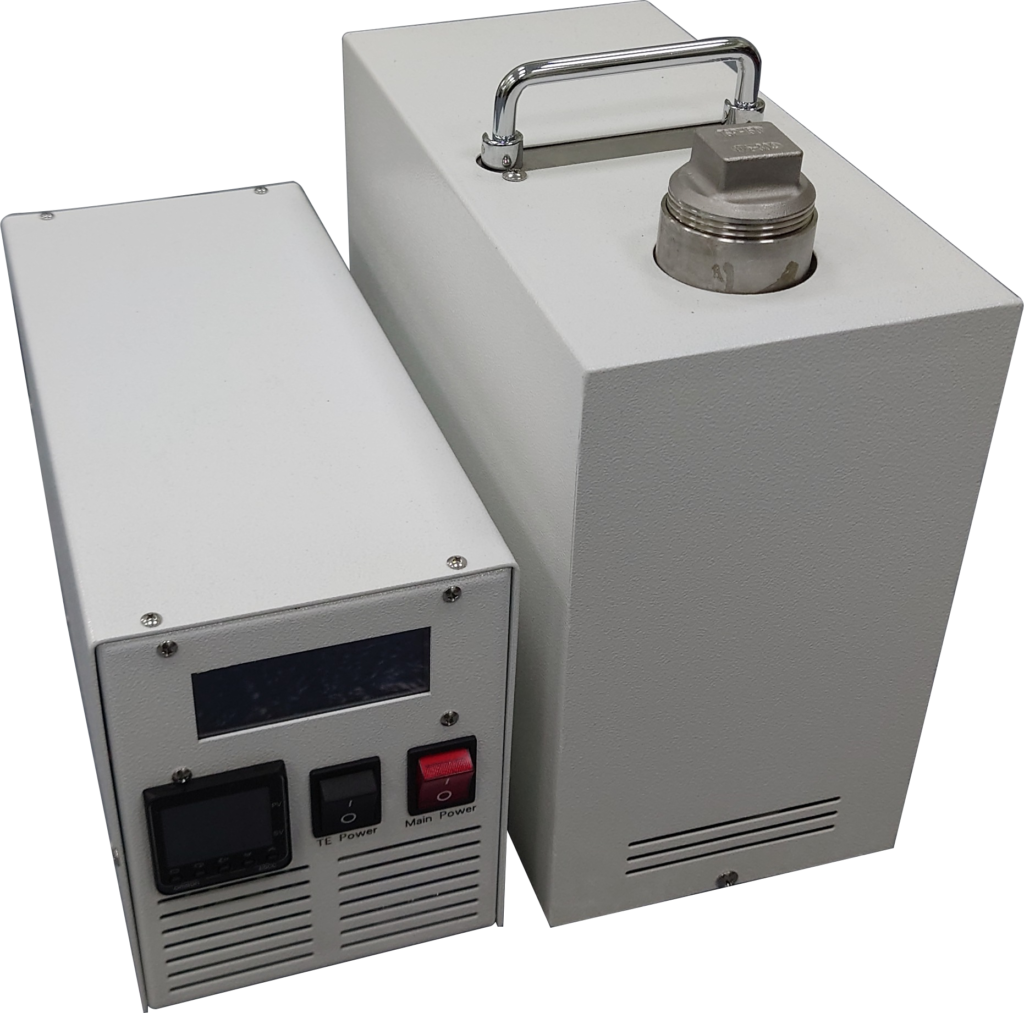

| Overall Size (W*D*H mm) | Controller： 140x310x180 Module： 150x310x255 | 320x400x430 | 320x500x430 |
| cooling capacity @20°C | 0.5 KW | 0.8 KW | 1.3 KW |
| cooling capacity @10°C | 0.35 KW | 0.6 KW | 1.0 KW |
| cooling capacity @0°C | 0.25 KW | 0.45 KW | 0.75 KW |
| Tank size | 2~5 L | ||
| Powr Supply | 1Φ 100V~240 VAC / 50~60Hz | ||
| Power Comsuption | 0.6 KW | 1.1 KW | 1.5 KW |
| Communcation (Option) | Analog (4-20mA) / (0-10V) / (RS232/RS485) | ||
| Extra function (Option) | Hi/Lo Level / Water Flow / Alarm Output | ||
